4m RGB Pixel Christmas Tree for Commercial Events
This 4m RGB pixel Christmas tree creates a colorful focal point for shopping centers, hotel entrances and commercial holiday events. Rows of LED pixels form an open cone around a metal frame, with an illuminated star at the top and a 2m-diameter base.

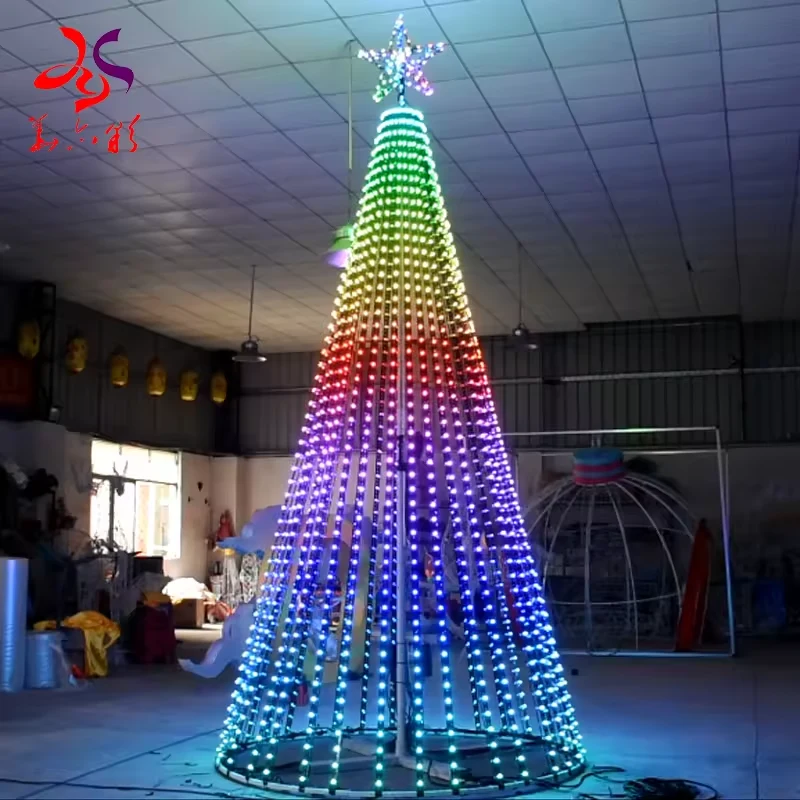

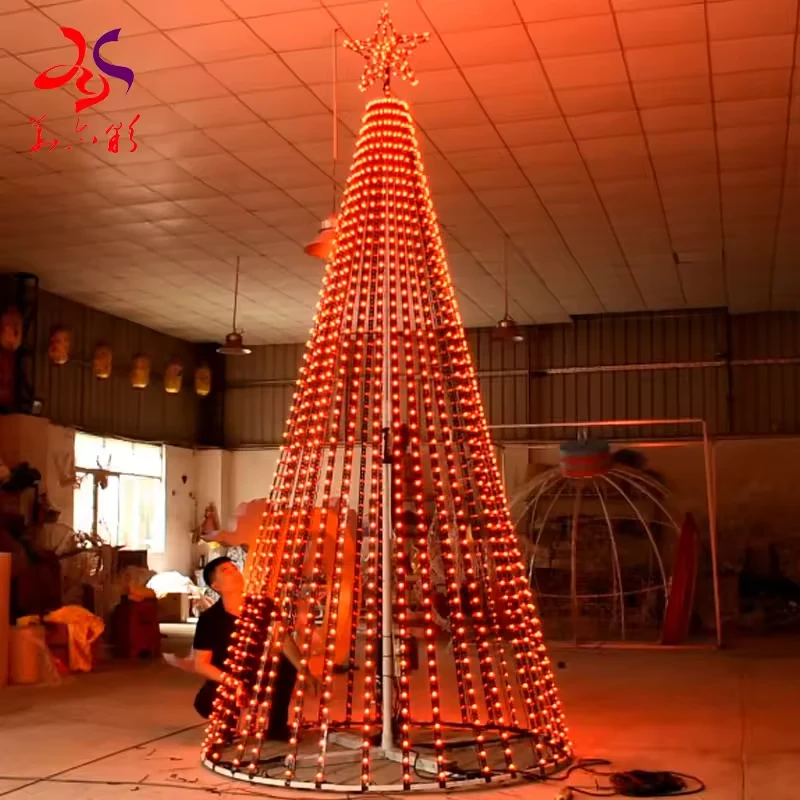

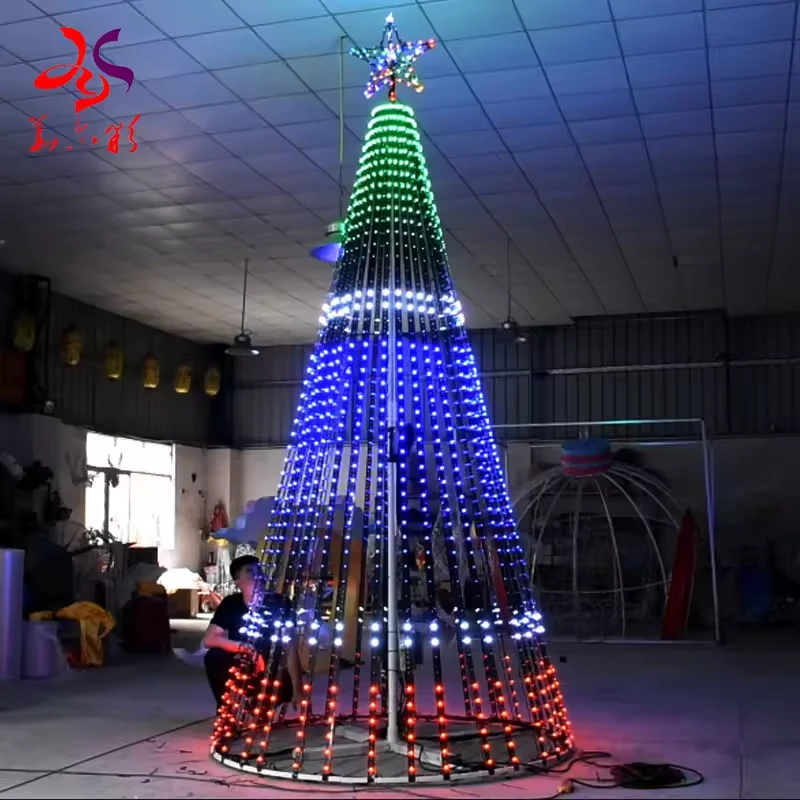

The factory photographs show the same tree displaying rainbow bands, separated color zones and a red scene. Its visible pixel rows give the display a modern lighting-led appearance. The listed 4m height offers a defined starting point for venues planning an event centerpiece within a measured space.
Programmable color scenes on an open cone

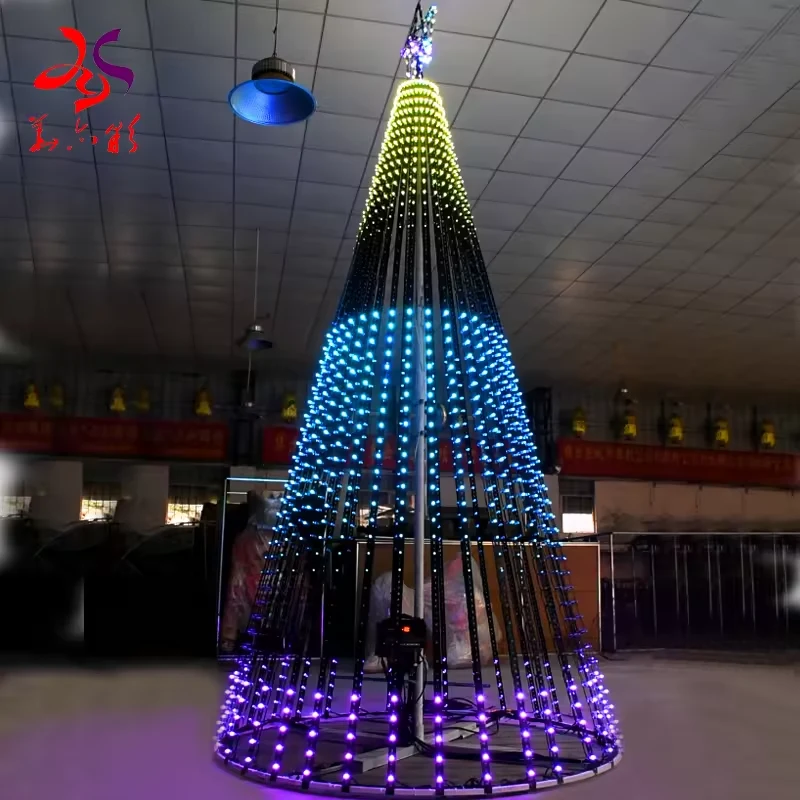

A pixel Christmas tree allows the light arrangement itself to become part of the decoration. In the pictured tests, one area can display blue while other areas display yellow, purple or red. Color selection and scene layout can be discussed around your venue’s festive palette and event schedule.
The open construction exposes the vertical light rows and circular support structure. Buyers can assess both the visual effect and the practical base arrangement from the workshop photographs. These are factory lighting tests, not photographs of a completed customer installation.
Where this 4-meter commercial pixel tree fits
- Mall entrances and indoor event areas: create a visible seasonal meeting point while leaving clear access to shops and emergency routes.
- Hotel and resort displays: coordinate the selected lighting colors with the entrance or event setting.
- Christmas markets and event plazas: use a defined-size light tree as a central decoration or as part of a coordinated group.
Allow more than the 2m tree diameter when planning the installation. Include the fixing arrangement, a protective perimeter where needed, cabling and service access. Confirm whether the quoted overall height includes the star topper before checking ceiling clearance or preparing drawings.
Product specifications
| Product | Programmable RGB pixel Christmas tree |
|---|---|
| Listed dimensions | 4m high × 2m diameter; confirm overall height including the selected topper |
| Construction | Metal frame, PVC components and LED lighting |
| Lighting | RGB pixel color scenes; dimming supported |
| Protection rating | IP65 listed for the lighting product; confirm protection of the complete supplied electrical assembly |
| Voltage configuration | 24–220V options listed; specify the required supply and driver arrangement |
| Customization | Color programs, decoration and project configuration by agreement |
| Packing | Carton and protective iron frame; final packing list follows the selected configuration |
| Origin | China |
Custom Materials, Protection and Project Options
Specify the tree as a coordinated structure, lighting system and transport package. The options below extend the reference design for your venue.
| Parameter | Available customization |
|---|---|
| Frame material options | Steel or aluminum alloy frame options, selected for the dimensions, structural design and assembly requirements. |
| Frame surface treatment | Baked paint finish or electrostatic powder coating with heat curing. |
| Frame color | Custom finish color to coordinate with the daytime decoration and lighting scheme. |
| Sectional construction | Detachable or modular construction available for transport, seasonal assembly and storage. |
| Lighting ingress protection options | IP65, IP67 or IP68 lighting configurations available to suit the specified application. |
| Power supply protection options | IP65, IP67 or IP68 power-supply options, selected separately for the installation environment. |
| Electrical conductors | Copper wiring; conductor size selected for the circuit load, cable length and operating voltage. |
| Voltage and plug configuration | Power input, lamp operating voltage and destination-market plug specified as a matched electrical configuration. |
| Tree proportions | Height, base diameter and topper dimensions tailored to the venue; overall height and topper height identified separately. |
| Transport sections | Section sizes, connection layout and lifting access planned around the transport and site-entry limits. |
| Pixel lighting layout | Pixel quantity, spacing and control zones configured for the selected tree dimensions and visual brief. |
| Show-control package | Controller, compatible protocol and lighting programs specified as part of the selected package; lighting density and effects can be customized. |
| Coastal exposure option | Material selection, coating system, connections and drainage can be adapted to coastal or high-humidity project conditions. |
| Packing configuration | Protective packing and component grouping tailored to the product dimensions and transport plan. |
| Installation documents | Assembly drawings, component numbering and remote installation guidance available; on-site support by agreement. |
| Factory preparation | Pre-assembly and illumination checks available for large or complex structures. |
These are configurable options, not a list of components included in every version. Final dimensions, power, weight and component ratings follow the approved project specification. Immersed applications require a separately specified design.
The project quotation should state the controller, pixel quantity, total electrical load, connectors and supplied accessories. The voltage range describes available configurations, not a claim that one assembly can be connected to every voltage.
Confirm the controller and show requirements before ordering
Start with the effects you need: a steady color, several preset scenes or a custom sequence. Confirm the playback method, scene selection and restart behavior with the supplied controller. If your venue already uses a lighting console, provide its protocol and connection details so compatibility can be checked.
Music synchronization, DMX512 compatibility, software licenses and audio equipment are separate configuration questions for this model. They should be specified in the order rather than assumed from the term “programmable.” For a larger municipal show system, compare our 35m DMX512 pixel Christmas tree project.
Factory testing, installation and seasonal reuse
HOYECHI supports commercial decoration projects with design coordination, factory production, pre-installation checks and packing preparation. For this tree, agree the scene demonstration and connection layout before dispatch. Keep an approved lighting reference with the project files so the receiving team knows what to expect during commissioning.
Plan the base fixing for the actual floor or ground conditions, and keep electrical connections away from public contact. Outdoor installations also require site-specific wind and weather planning. Numbered parts, protected light strings and an agreed disassembly sequence help the venue prepare for seasonal storage and reinstallation.
Pixel-row identification and seasonal packing
Check the labels on frame sections, light rows and supplied control components against the order list. Keep the supplied connection map with the tree; connector appearance alone does not establish compatibility. For reuse, retain row and circuit labels and pack lights and connectors so they are not pulled or trapped by frame components.
Follow the order-specific assembly and fixing plan. Qualified electrical personnel must check the specified supply, circuit labels and connectors before energizing; isolate power before handling connections. For support, send the order reference, overall photos and close-ups of the affected joint or component label.
Download the commercial Christmas tree installation and packing guide (PDF).
General planning and packing reference with AI-generated schematic illustrations. Hanging-foliage steps do not describe this design; use the documents supplied for the ordered tree.
Frequently asked questions
Is this a foliage Christmas tree?
The pictured model is an open-frame pixel tree. Its visible light rows create the cone silhouette. If you need a dense traditional appearance, browse the other commercial Christmas tree designs.
Can the colors be changed for different events?
Yes. The factory images show multiple color arrangements on the same tree. Confirm the required scenes and how your team will select them with the controller included in your proposal.
Does the package include a music controller?
The exact controller package is not established by the product photographs. Request music synchronization explicitly if needed, and confirm the playback equipment, programming scope and compatibility before ordering.
What should I send for an accurate quotation?
Send the venue photographs, available floor area, height clearance, indoor or outdoor location, destination country, supply voltage and opening date. Include any existing control system and the lighting effects you want.
